AstraControlPower
4 Channel LED Driver with PWM dimming input. LED2001PHR is the driver IC, it can support up to 4A, 3V - 18V at 850KHz switching frequency. Test plugs for each input and output. Optimized for good dimming performance. The board connects to AstraControl ESP32-based control PCB uses WiFi with an external antenna and 5Mbps RS-485. Direct copper heat-sink PCB for LED diode AstraBeamLED.
Table of contents

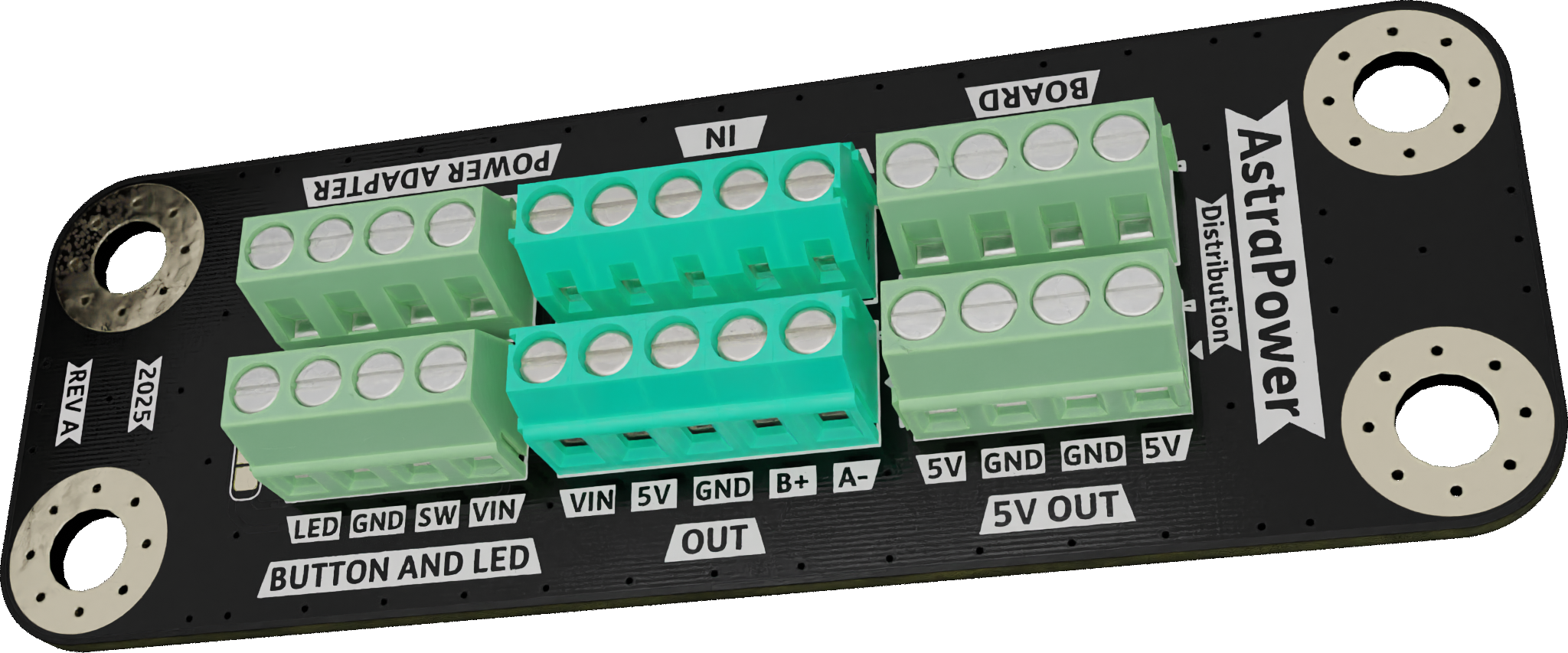

Render Top Angled

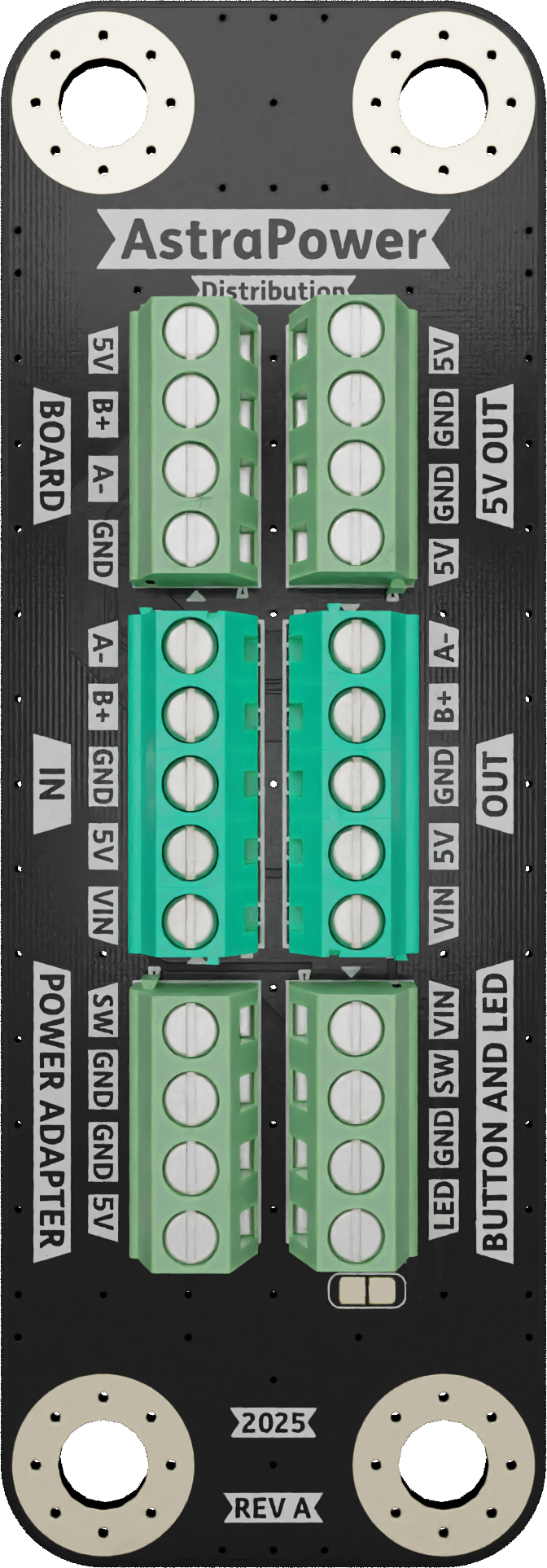

Render Top

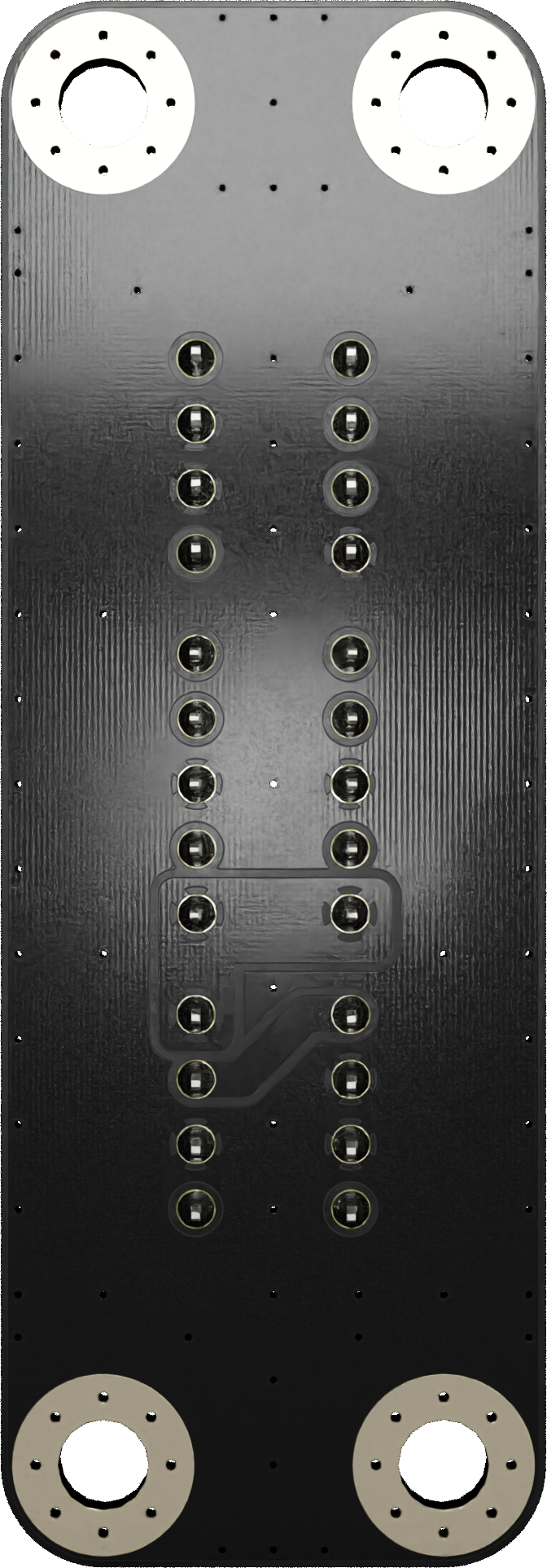

Render Bottom
Schematic
Dark
Monochromatic
Light
Assembly
Dark
Light
Gerber viewer on tracespace.io
Interactive BOM
Check component locations by hovering over a specific component. The visual elements might not be precise enough for pcb review but can be very useful since it’s possible to pan and zoom. Not all BOM columns are available here, for datasheet links see BOM below.
BOM
All components with Values, References, Sheetpath and Links to the datasheet.
Downloads
JLCPCB
Eurocircuits
3D Step
Report
ERC
ERC Report
- Errors: 0
- Warnings: 0
- Link: HTML Report
DRC
DRC Report
- Errors: 0
- Warnings: 0
- Link: HTML Report
PCB
Board size: 40.0x44.0 mm (1.57x1.73 inches)
- This is the size of the rectangle that contains the board
- Thickness: 1.61 mm (63 mils)
- Material: FR4
- Finish: ENIG
- Layers: 4
- Copper thickness: 35 / 15 µm
Solder mask: TOP / BOTTOM
- Color: #00000080
Silk screen: TOP / BOTTOM
- Color: White
Stackup:
Impedance controlled: YES
| Name | Type | Color | Thickness [µm] | Material | Er | Loss tan |
|---|---|---|---|---|---|---|
| F.SilkS | Top Silk Screen | White | ||||
| F.Paste | Top Solder Paste | |||||
| F.Mask | Top Solder Mask | #00000080 | 10 | |||
| F.Cu | copper | 35 | ||||
| dielectric 1 | prepreg | #8D5316ED | 210 | FR4 | 4.4 | 0.020 |
| In1.Cu | copper | 15 | ||||
| dielectric 2 | core | #8D5316ED | 1065 | FR4 | 4.6 | 0.020 |
| In2.Cu | copper | 15 | ||||
| dielectric 3 | prepreg | #8D5316ED | 210 | FR4 | 4.4 | 0.020 |
| B.Cu | copper | 35 | ||||
| B.Mask | Bottom Solder Mask | #00000080 | 10 | |||
| B.Paste | Bottom Solder Paste | |||||
| B.SilkS | Bottom Silk Screen | White |
Important sizes
Clearance: 0.2 mm (8 mils)
Track width: 0.19 mm (8 mils)
- By design rules: 0.15 mm (6 mils)
Drill: 0.5 mm (20 mils)
- Vias: 0.5 mm (20 mils) [Design: 0.4 mm (16 mils)]
- Pads: 1.5 mm (59 mils)
- The above values are real drill sizes, they add 0.1 mm (4 mils) to plated holes (PTH)
Via: 0.8/0.4 mm (31/16 mils)
- By design rules: 0.3/0.3 mm (12/12 mils)
- Micro via: yes [0.2/0.1 mm (8/4 mils)]
- Buried/blind via: yes
- Total: 51 (thru: 51 buried/blind: 0 micro: 0)
Outer Annular Ring: 0.15 mm (6 mils)
- By design rules: 0.1 mm (4 mils)
Eurocircuits class: 5B
- Using min drill 0.5 mm for an OAR of 0.15 mm
General stats
Components count: (SMD/THT)
- Top: 0/6 (THT)
- Bottom: 0/0 (NONE)
Defined tracks:
- 0.3 mm (12 mils)
- 0.35 mm (14 mils)
- 0.5 mm (20 mils)
- 0.7 mm (28 mils)
- 0.9 mm (35 mils)
- 1.0 mm (39 mils)
Used tracks:
- 0.19 mm (8 mils) (21) defined: no
- 1.0 mm (39 mils) (5) defined: yes
- 2.9 mm (114 mils) (1) defined: no
- 4.0 mm (157 mils) (1) defined: no
Defined vias:
- 0.55/0.25 mm (22/10 mils)
- 0.7/0.3 mm (28/12 mils)
- 0.8/0.4 mm (31/16 mils)
Used vias:
- 0.8/0.4 mm (31/16 mils) (Count: 51, Aspect: 2.0 A) defined: yes
Holes (excluding vias):
- 1.4 mm (55 mils) (26)
Oval holes:
Drill tools (including vias and computing adjusts and rounding):
- 0.5 mm (20 mils) (51)
- 1.5 mm (59 mils) (26)
Solder paste stats:
Using a paste with 87.75 % alloy, that has an specific gravity for the alloy of 7.4 g/cm³ and 1.0 g/cm³ for the flux. This paste has an specific gravity of 4.15 g/cm³.
The stencil thickness is 0.12 mm.
| Side | Pads with paste | Area [mm²] | Paste [g] |
|---|---|---|---|
| Total | 2 | 3.48 | 0.02 |
Note: this is just an approximation to the theoretical value. Margins of the solder mask and waste aren’t computed.
Know Issues
- TBD
